AC-CDI/DC-CDI/TCI tester.
– Hardware version v4r4c2
– Software version v6r2c0
– Simulate a pickup coil.
– Extract and display advance curve from digital CDI or TCI
– 0.96′ screen display with PC connection.
– 100 to 300Volts source to power an ACCDI

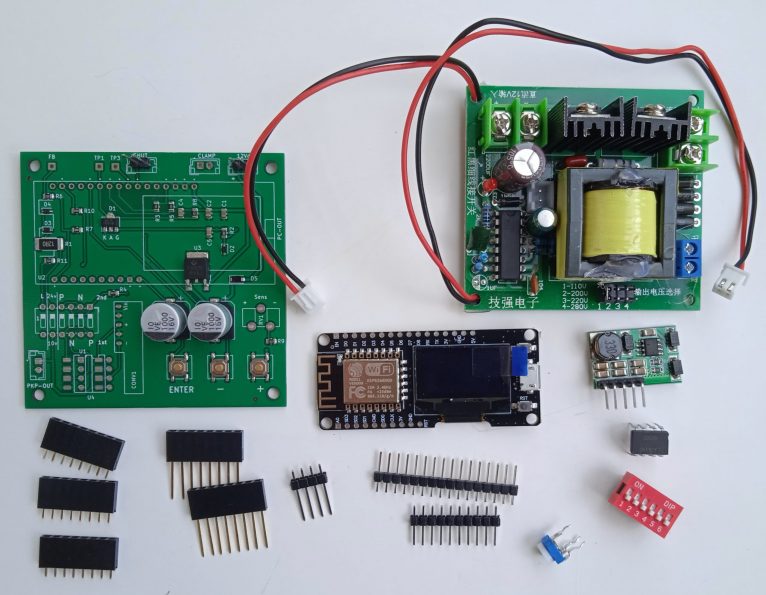

Content of the KIT:
– 1 double side PCB drilled, etched, silk screen and legend printing.
– All SMD components already soldered except 1 IC.
To sold:
– 1 LAA110 IC
– 1 DC-DC converter.
– 1 ESP8266 with 0.96 Inch OLED Display already programmed with CDI-TCI Tester v6.2 firmware.
– 1 6ways DIP Switch
– 1 trimmer
– Headers
– 1 Custom DC-DC converter for HV source.
– 1 schematic.
